Leveling casters are specialized mobility components designed to provide both mobility and stability to various types of equipment. Unlike standard casters that focus solely on movement, leveling casters are engineered with an integrated leveling pad that can be lowered to stabilize the equipment once it is positioned. This unique design ensures that heavy machinery, workstations, medical devices, or laboratory tables remain perfectly balanced, even on uneven floors.
The core function of a leveling caster lies in its dual-purpose design — mobility and leveling. When the caster’s pad is retracted, the wheel moves freely, allowing the equipment to roll smoothly. When the pad is lowered, it contacts the ground and lifts the wheel slightly, immobilizing the equipment while absorbing vibrations. This balance of motion and stillness makes leveling casters a preferred choice in high-precision environments.
| Parameter | Description |
|---|---|
| Material | Nylon, Polyurethane, or Thermoplastic Rubber |
| Load Capacity | 100kg – 2000kg per caster (varies by model) |
| Wheel Diameter | 50mm – 125mm |
| Leveling Pad Material | Reinforced Nylon or Rubber |
| Adjustment Range | 5mm – 15mm |

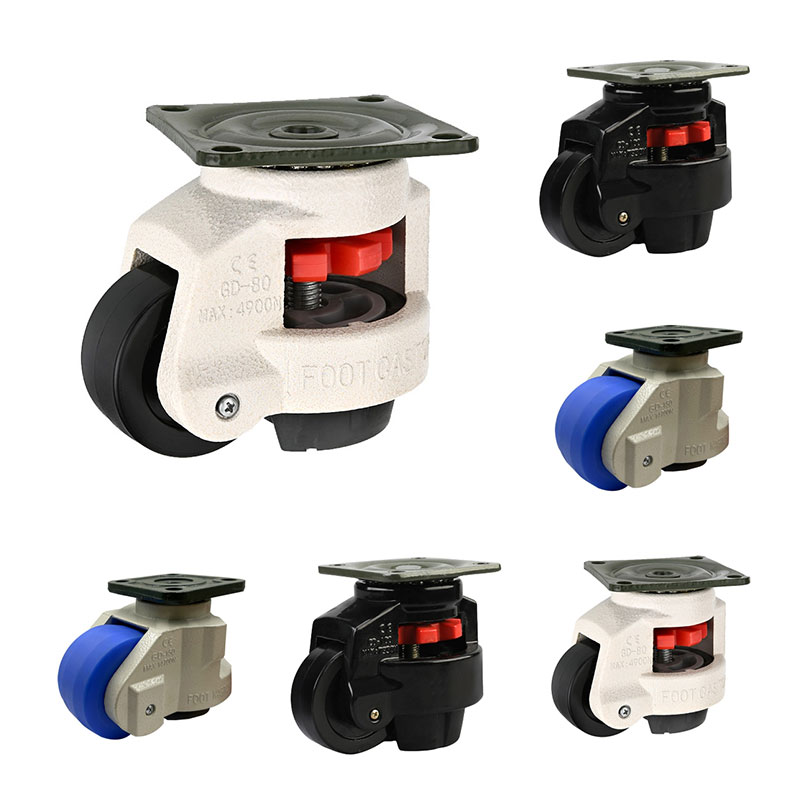

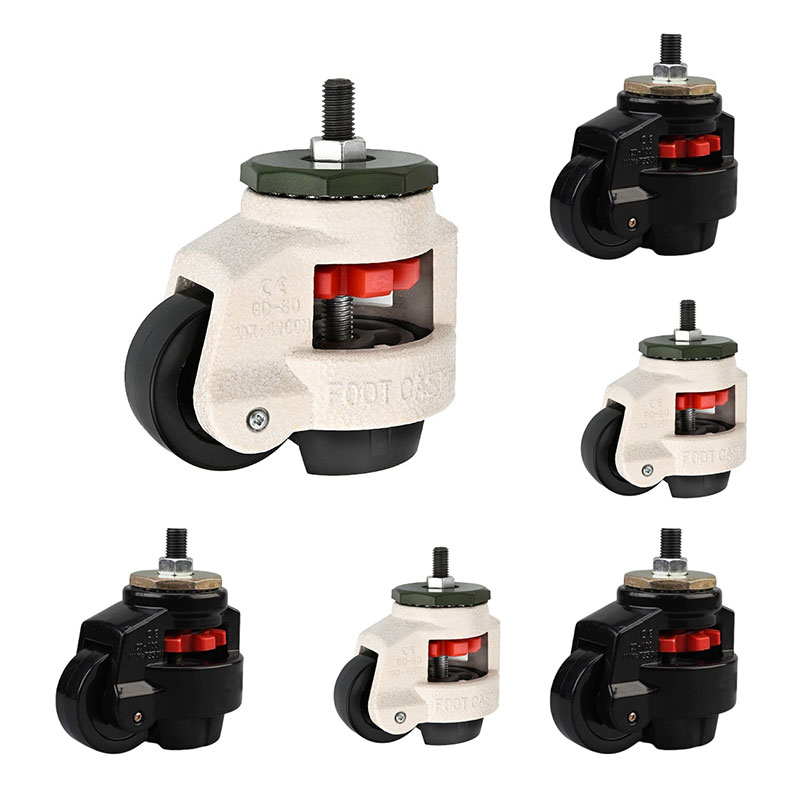

| Mounting Type | Top Plate or Threaded Stem |
| Operating Temperature Range | -20°C to +80°C |
| Applications | Workbenches, CNC machines, Medical Equipment, Laboratory Tables, Server Racks |
Unlock Mode: Wheels rotate freely to move equipment smoothly.
Lock Mode: The adjustable pad is turned downward until it contacts the floor.
Stabilization: The wheel slightly lifts off the ground, transferring the load to the leveling pad.
Result: The equipment remains firmly in place with reduced vibration and no unwanted movement.
This system prevents unwanted rolling and provides vibration isolation, making it ideal for sensitive or precision-dependent operations.
Choosing the right caster is essential for balancing equipment mobility with operational stability. Leveling casters stand out for their versatility, durability, and ability to protect both the equipment and the working environment.
Enhanced Stability: The leveling pad ensures firm contact with the floor, eliminating unwanted vibrations.
Floor Protection: Non-marking wheels prevent scratches and wear on flooring surfaces.
Precision Adjustment: Threaded handles or knobs allow users to fine-tune the height and stability.
Noise Reduction: Rubber-based pads minimize operational noise, ideal for laboratories and offices.
Ease of Installation: Available in various mounting configurations for different types of equipment.
Versatility: Suitable for industrial machinery, furniture, or electronic equipment.
In industries where precision and safety are crucial, such as manufacturing, healthcare, or research, the need for stable and mobile equipment is constant. Leveling casters help prevent the equipment from wobbling or moving during operation. For example, laboratory machines with sensitive sensors can maintain accuracy because vibrations are minimized. Similarly, heavy workstations benefit from the casters’ strength while remaining easy to reposition when needed.
Environmental and Economic Benefits:
By using leveling casters, equipment lifespan is extended due to reduced vibration and floor damage. This lowers maintenance costs and improves workplace ergonomics by simplifying repositioning tasks.
The design and performance of leveling casters vary depending on their intended use. Medium Duty and Heavy Duty Leveling Casters differ mainly in load capacity, wheel material, and pad structure.

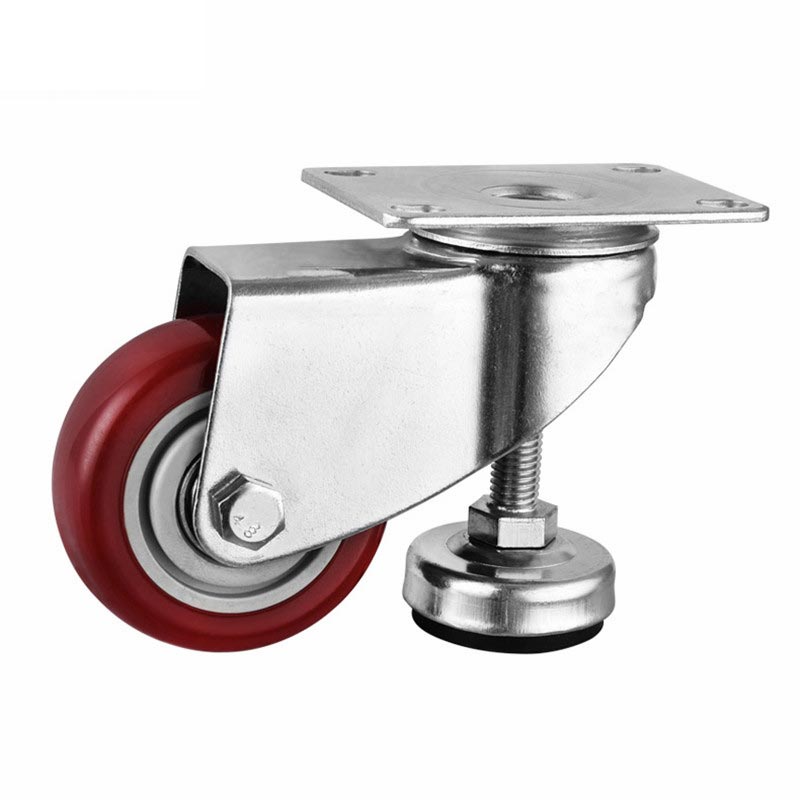

Medium Duty Leveling Casters are built for equipment that requires both mobility and moderate load-bearing capacity. They are commonly used in office workstations, light industrial benches, and medical devices.
Key Characteristics of Medium Duty Leveling Casters:
| Parameter | Specification |
|---|---|
| Load Capacity | 150kg – 500kg per caster |
| Wheel Diameter | 60mm – 80mm |
| Leveling Pad Material | Reinforced Rubber |
| Frame Material | Zinc-Plated Steel or Aluminum Alloy |
| Adjustment Knob | Manual Threaded Knob |
| Typical Applications | Medical Equipment, Office Furniture, Test Benches |
Advantages:
Offers a balance between strength and mobility.
Provides silent rolling with minimal vibration.
Easy manual height adjustment without tools.
Suitable for medium-sized equipment requiring stability and flexibility.
Heavy Duty Leveling Casters are designed for machinery, production equipment, and devices that require a high load-bearing capacity and superior vibration control.
Key Characteristics of Heavy Duty Leveling Casters:
| Parameter | Specification |
|---|---|
| Load Capacity | 600kg – 2000kg per caster |
| Wheel Diameter | 100mm – 125mm |
| Wheel Material | High-Strength Polyurethane or Cast Nylon |
| Pad Material | Reinforced Nylon or Steel-Embedded Rubber |
| Frame Material | Stainless Steel or Powder-Coated Steel |
| Adjustment Mechanism | Heavy-Duty Hex Socket or Ratchet Knob |
| Typical Applications | CNC Machines, Industrial Racks, Heavy Workstations |
Advantages:
Superior strength and load distribution.
Excellent floor adherence on uneven surfaces.
Resistant to oil, chemical exposure, and temperature fluctuations.
Engineered for precision equipment where vibration control is critical.
The decision depends on the total weight of the equipment and the stability level required. For example:
For moderate loads (below 500kg) → Choose Medium Duty Leveling Casters.
For high-load or vibration-sensitive machinery (above 600kg) → Opt for Heavy Duty Leveling Casters.
Both models offer long-term durability and are engineered for repeated adjustments without performance degradation.
As industries move toward automation and flexible work environments, the demand for adjustable, vibration-resistant casters continues to grow. Future leveling caster designs will focus on:
Smart Adjustments: Integration of digital level sensors to automatically adjust height.
Eco-Friendly Materials: Sustainable and recyclable materials for wheels and pads.
Improved Durability: Enhanced corrosion resistance and shock absorption technologies.
Lightweight Strength: Use of aluminum and composite materials for better efficiency.
These innovations will support applications in robotics, cleanrooms, smart factories, and healthcare environments, where both precision and mobility are essential.
Q1: What makes leveling casters different from traditional casters?
A1: Leveling casters combine a rolling wheel and a stabilizing pad, allowing users to move equipment easily and then lock it firmly in place. Traditional casters can only move and require external locks to prevent rolling, while leveling casters provide integrated leveling and stability.
Q2: How much weight can leveling casters support?
A2: Depending on the model, leveling casters can support anywhere from 100kg to 2000kg per caster. Heavy Duty Leveling Casters are typically used for machinery or heavy industrial applications due to their superior load-bearing capacity.
Q3: How do I maintain leveling casters for long-term use?
A3: Regularly clean the wheels and pads to remove debris, lubricate the moving parts periodically, and ensure that the adjustment knobs or mechanisms remain rust-free. Avoid overloading casters beyond their rated capacity to maintain performance and longevity.
Leveling casters are essential components for ensuring mobility, safety, and operational efficiency across various industries. From lightweight office workstations to heavy industrial machines, they provide the perfect balance between movement and stability. Whether you choose Medium Duty Leveling Casters for lighter applications or Heavy Duty Leveling Casters for robust machinery, these components enhance precision, reduce noise, and protect both equipment and floors.
As industries continue to prioritize flexibility and stability, the role of leveling casters will become even more vital in ensuring smooth, efficient workflows. For high-quality, durable leveling caster solutions designed to meet a range of industrial and commercial needs, CMCL stands as a trusted name committed to engineering excellence.
Contact us today to learn more about CMCL’s comprehensive range of Leveling Casters and how they can improve your equipment’s performance and stability.
